CSD17577Q5A

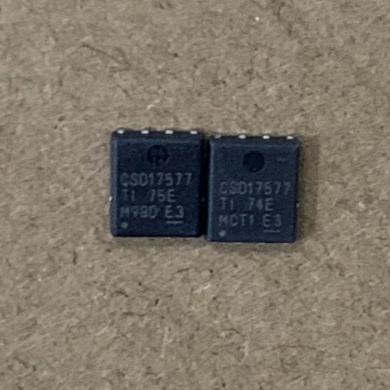

The CSD17577Q5A is a 30V N-channel NexFET power MOSFET from Texas Instruments, designed for high-efficiency synchronous buck converter applications in networking, telecom, and computing systems. Built on TI’s NexFET technology platform, it achieves an ultra-low RDS(on) of 3.5mΩ typical (4.2mΩ max at VGS=10V) with a total gate charge of only 13nC, resulting in an excellent figure of merit (FOM = RDS(on) × Qg ≈ 55mΩ·nC). The SON 5mm × 6mm package provides low thermal resistance (RθJC = 2.8°C/W max) and low parasitic inductance for high-frequency operation. The device is rated for 60A package-limited continuous drain current at 25°C case temperature and is avalanche-rated for robustness in unclamped inductive switching events. Optimized for both control FET and synchronous FET positions in synchronous buck converters.

NexFET Technology

The CSD17577Q5A is built on TI’s NexFET technology, which uses a vertical copper-strap MOSFET architecture. Unlike conventional planar MOSFETs where the gate and source metallization overlap, NexFET uses a copper strap to connect the source to the package, significantly reducing package inductance and improving thermal performance. This enables the ultra-low RDS(on) per silicon area and low gate charge that characterize NexFET devices.

Synchronous Buck Operation

In a synchronous buck converter, the CSD17577Q5A can serve as either the high-side (control) or low-side (synchronous) MOSFET. As a control FET, its low Qgd (2.8nC) ensures fast switching transitions with minimal switching loss. As a synchronous FET, its ultra-low RDS(on) minimizes conduction loss during the on-time period. The low FOM (RDS(on) × Qg) makes it suitable for both roles in moderate-frequency converters operating at 300kHz to 1MHz.

Gate Drive Requirements

The device is specified for RDS(on) at both VGS=10V (4.2mΩ) and VGS=4.5V (5.8mΩ), enabling logic-level gate drive from 5V controllers. For minimum conduction loss, 10V gate drive is recommended. The typical VGS(th) of 1.4V ensures robust turn-off margin when the gate is driven to 0V, preventing false turn-on due to dV/dt coupling through the Miller capacitance.

Thermal Management

The SON 5mm × 6mm package features an exposed drain pad that solders directly to the PCB, providing RθJC = 2.8°C/W. With RθJA = 40°C/W on a 1-inch² 2oz copper pad, the device can dissipate significant power. For high-current applications, proper thermal via arrays under the drain pad are essential to spread heat into inner PCB layers and copper planes.

• Synchronous buck converters in networking and telecom equipment where ultra-low RDS(on) and low Qg minimize total power loss at 300kHz–1MHz switching frequencies
• Point-of-load DC-DC converters for servers and computing systems requiring 60A current handling in compact SON 5x6mm footprint
• Motor drive H-bridge circuits where avalanche rating provides robustness against inductive flyback during PWM switching
• Battery management system load switches where 4.2mΩ RDS(on) minimizes voltage drop and conduction loss in the power path
• OR-ing and hot-swap applications where low RDS(on) reduces forward voltage drop and power dissipation in redundant power paths
