TPS51200DRC

The TPS51200DRC is a sink and source Double Data Rate (DDR) termination regulator manufactured by Texas Instruments, specifically designed for low input voltage, low-cost, low-noise systems where space is a key consideration. It maintains a fast transient response and requires a minimum output capacitance of only 20 µF (typically 3 x 10 µF MLCCs), making it one of the most compact and cost-effective VTT regulation solutions available.

The device integrates a high-performance low-dropout (LDO) linear regulator capable of both sourcing and sinking current up to 3 A, making it ideal for DDR memory bus termination applications. The output voltage (VO) tracks the reference input (REFIN) voltage, which can be connected directly to the memory supply voltage (VDDQ) or through a resistor divider, providing flexibility for DDR, DDR2, DDR3, DDR3L, LPDDR3, and DDR4 VTT applications.

Key features include a VLDOIN voltage range of 1.1V to 3.5V supporting both 2.5V and 3.3V power rails, a ±10 mA buffered reference output (REFOUT) for generating the VTTREF reference voltage used by DDR memory controllers, remote voltage sensing (VOSNS) for tight regulation at the load, built-in droop compensation, soft-start current limiting, undervoltage lockout (UVLO), overcurrent protection (OCL), and thermal shutdown.

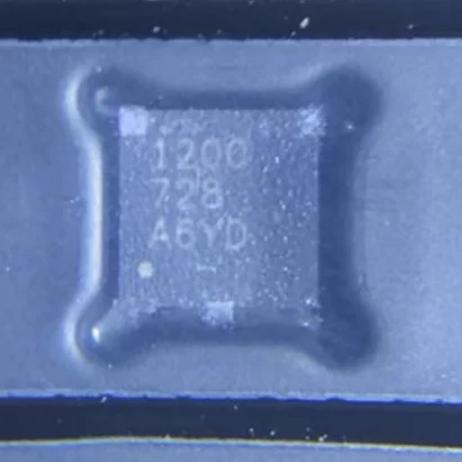

The TPS51200 provides an open-drain PGOOD signal to monitor output regulation status and an EN (enable) input that can be used to discharge VTT during S3 (suspend-to-RAM) state for DDR power management. The DRC package is a thermally efficient 10-pin VSON (Very thin Small Outline No-lead) with exposed thermal pad, measuring 3.00 x 3.00 mm. The device operates from -40°C to +85°C and is rated both Green and Pb-free.

The TPS51200DRC operates as a bidirectional (sink/source) linear termination voltage regulator, generating the VTT bus termination voltage for DDR memory systems.

Output Voltage Regulation: The output voltage (VO) is regulated to match the reference input (REFIN). For standard DDR termination, REFIN is typically connected to a resistor divider from VDDQ (the memory supply voltage) such that REFIN = VDDQ / 2. The internal error amplifier compares the sensed output voltage (via VOSNS) against the REFIN-derived reference, driving the pass element to source or sink current as needed to maintain VO = VDDQ / 2. This half-VDDQ tracking is the standard VTT voltage required by DDR memory specifications.

Sink and Source Capability: Unlike unidirectional LDO regulators, the TPS51200 can both source current (when VTT load demands more current, e.g., driving DQ lines LOW) and sink current (when VTT load returns current, e.g., driving DQ lines HIGH). This bidirectional capability is essential for DDR termination, where the termination resistors connected to VTT must both absorb and supply current depending on the data bus state. The integrated high-side and low-side pass elements enable this sink/source operation without external components.

Droop Compensation: The device includes built-in droop compensation that pre-adjusts the output voltage slightly higher under heavy sink conditions and slightly lower under heavy source conditions. This anticipatory compensation counteracts the parasitic resistance in PCB traces and vias, maintaining tighter effective regulation at the DDR DIMM termination point.

Reference Output (REFOUT): The REFIN voltage is buffered and output on the REFOUT pin, providing a ±10 mA buffered reference voltage (VTTREF) for DDR memory controllers. REFOUT becomes active when REFIN exceeds 0.390V and VIN is above the UVLO threshold. When REFOUT drops below 0.375V, it is disabled and discharged to GND through an internal 10 kΩ MOSFET. A 0.1 µF ceramic capacitor to GND is required on REFOUT for stability. REFOUT operation is independent of the EN pin state.

Soft-Start Sequencing: At startup, a current clamp implements soft-start by limiting the output current to a low constant value, allowing the output capacitors to charge linearly. This prevents inrush current spikes that could damage the device or cause system voltage rail droops. Once the output reaches the target voltage, the current clamp is released and the regulator enters normal operation.

S3/S5 Power State Support: The EN pin serves dual purpose: when HIGH, the VO regulator is enabled; when LOW (connected to SLP_S3 signal), the VO regulator is disabled and VTT is discharged through an internal MOSFET to GND. This discharge path ensures VTT returns to 0V during suspend-to-RAM (S3) state, meeting DDR power sequencing requirements. REFOUT remains active during S3 state as it is independent of EN.

Power Good (PGOOD): The open-drain PGOOD output goes HIGH-impedance (after a 1 ms deglitch delay) when VO is within ±5% of the target voltage, indicating proper regulation. PGOOD goes LOW (asserted) when VO is out of regulation, during UVLO, during thermal shutdown, or when EN is LOW.

Protection Mechanisms: UVLO disables the device when VIN drops below the threshold (approximately 2.1V), preventing erratic operation during power-up/power-down. Overcurrent protection (OCL) limits the output current to prevent damage during fault conditions. Thermal shutdown disables the device when junction temperature exceeds approximately 150°C, with automatic recovery when temperature drops.
