UC3843BNG

Current-mode PWM controller, 500kHz, 5V ref, UVLO 8.4V/7.6V, 8-PDIP

11500

Effective Inventory
Go to Inquiry

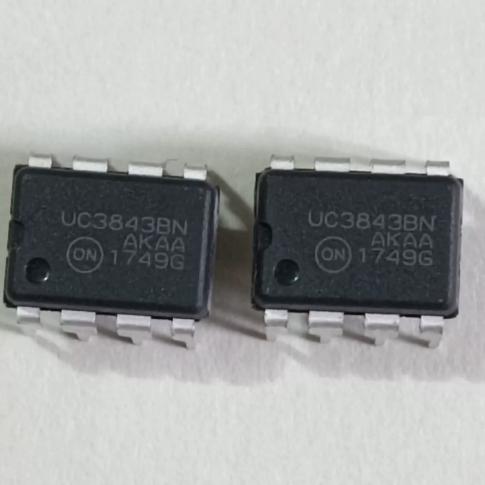

Image for reference only

Manufacturer Part：

UC3843BNG

Package：

8-PDIP (9.81 x 6.35 x 4.57mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L072RBT6

TPS65217CRSLR

SN74HC273NSR

ADE7953ACPZ-RL

SN74HC138N

ATMEGA328-AU

AD826ARZ-REEL7

TPA0211DGNR

Description

Product Overview

The UC3843BNG from Texas Instruments is a current-mode PWM controller for off-line and DC-DC converters. It features 500kHz switching, trimmed oscillator for precise frequency, current-sense comparator, totem-pole output, and undervoltage lockout (8.4V/7.6V) in an 8-pin PDIP package.

Key Specifications

Manufacturer Texas Instruments
Type Current-Mode PWM Controller
Switching Frequency Up to 500kHz
Reference Voltage 5.0V +-1%
UVLO Threshold 8.4V on / 7.6V off
Max Duty Cycle 100%
Output Current +-1A peak totem-pole
Supply Voltage Up to 30V
Start-Up Current 0.5mA max
Operating Current 11mA typical
Package 8-PDIP
Operating Temperature 0C to +70C

Features

  • Current-mode PWM operation up to 500kHz
  • Trimmed oscillator for precise frequency control
  • 5V reference with +-1% accuracy
  • Undervoltage lockout with hysteresis (8.4V/7.6V)
  • Totem-pole output for direct MOSFET drive
  • Current-sense comparator with 1V threshold
  • Automatic feedforward compensation
  • Pulse-by-pulse current limiting
  • Low start-up current: 0.5mA

Applications

  • Off-line flyback and forward converters
  • DC-DC buck, boost, and buck-boost converters
  • Battery charger power supplies
  • Industrial power supply designs

The Texas Instruments UC3843BNG is a high-performance fixed-frequency current-mode PWM controller optimized for off-line and DC-DC converter applications. The UC3843B is the industry-standard controller for flyback and forward converter topologies. It features a trimmed oscillator for precise frequency, a temperature-compensated 5V reference with +-1% accuracy, a high-gain error amplifier, current-sense comparator, and a totem-pole output stage capable of +-1A peak current for direct MOSFET drive. The current-mode architecture provides inherent input voltage feedforward, excellent line regulation, and simplified loop compensation compared to voltage-mode control. Pulse-by-pulse current limiting ensures safe operation during overload and short-circuit conditions.

The UC3843BNG operates as a fixed-frequency current-mode PWM controller: 1) Oscillator: An external resistor (RT) and capacitor (CT) set the switching frequency up to 500kHz. The oscillator generates a clock pulse that sets the output flip-flop at the beginning of each switching cycle. 2) Current-Mode Control: The output switch is turned on at the start of each cycle. When the voltage across the current-sense resistor (sensed at the ISENSE pin) reaches the threshold set by the error amplifier output, the comparator resets the flip-flop, turning off the switch. This creates natural input voltage feedforward and simplifies loop compensation to a single-pole response. 3) Error Amplifier: Compares the output voltage feedback with the 5V reference, adjusting the current-sense threshold to maintain regulation. 4) UVLO: The 8.4V start/7.6V stop threshold prevents operation at insufficient supply voltage, ensuring clean start-up.

Pin Name Type Function
1 COMP I/O Error amplifier output / compensation
2 VFB Input Error amplifier inverting input (feedback)
3 ISENSE Input Current sense input (1V threshold)
4 RT/CT I/O Oscillator timing RC network
5 GND Ground Ground
6 OUTPUT Output PWM output (totem-pole, +-1A)
7 VCC Power Supply voltage (up to 30V)
8 VREF Output 5V reference output (+-1%)
  • Off-line flyback converter for consumer electronics power adapters
  • DC-DC boost converter for battery-powered industrial equipment
  • Isolated telecom power supply with current-mode control
Manufacturer Part Number Package Notes
TI UC3842BNG 8-PDIP 16V/10V UVLO version
TI UC3844BNG 8-PDIP 50% max duty cycle version
onsemi UC3843BVD1G 8-SOIC SMD version, same function
ST UC3843BN 8-PDIP Second source, equivalent
