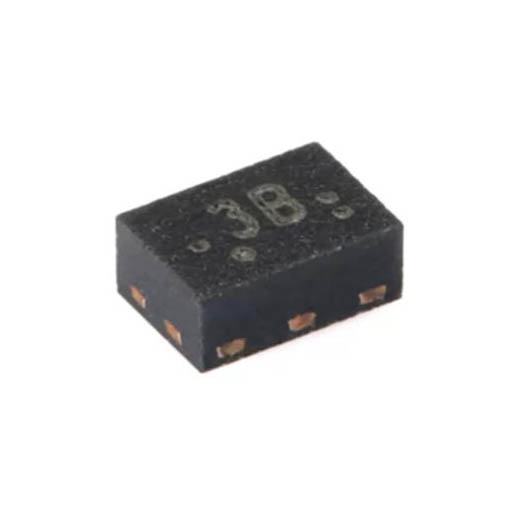

TPD4S012DRYR

The TPD4S012DRYR is a four-channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode array manufactured by Texas Instruments, specifically engineered for USB High-Speed, USB On-The-Go (OTG), and USB Charger interfaces. In modern portable devices, the USB connector serves as the primary interface for high-speed data transfer, audio, charging, and car-kit connectivity. To accommodate these diverse functions, the USB port must tolerate varying voltage levels on different pins. The TPD4S012 resolves this challenge by integrating two distinct clamp architectures within a single chip: ultra-low-capacitance (0.8 pF) steering diodes for the high-speed signal lines (D+, D-, ID) and a higher-voltage tolerant clamp for the VBUS line that withstands up to 15 V continuously. This dual-clamp design leverages Texas Instruments’ proprietary snap-back technology, which maintains a high standoff voltage under normal operating conditions and rapidly transitions to a lower clamp voltage during ESD stress events, providing robust transient protection without compromising signal quality. The device is packaged in a USON-6 (DRY) footprint of only 1.45 x 1.00 x 0.6 mm with flow-through pin mapping, enabling placement directly at the USB connector with minimal parasitic inductance and zero additional signal skew.

The TPD4S012DRYR employs two independent protection subsystems within a single monolithic device:

1. High-Speed Signal Line Protection (D+, D-, ID): Each signal pin is connected to a steering-diode-based ESD clamp with typical capacitance of only 0.8 pF. During normal USB 2.0 High-Speed operation at 480 Mbps, this ultra-low capacitance introduces negligible signal attenuation and preserves the differential impedance matching required by the USB specification. When an ESD transient exceeding the breakdown voltage (6 V min) is applied, the clamp diodes conduct and route the surge current to ground. The snap-back mechanism then reduces the clamp voltage well below the breakdown threshold, offering a low dynamic resistance (1 ohm typical) that limits the voltage seen by the downstream transceiver.

2. VBUS Line Protection: The VBUS pin integrates a separate ESD clamp with higher capacitance (11 pF typical) designed for power-line rather than high-speed signal protection. This clamp tolerates continuous DC voltages up to 15 V, accommodating non-standard charger voltages and USB OTG host-mode supply conditions. Its breakdown voltage is 20 V minimum, and the absolute maximum rating extends to 20 V. During an ESD or surge event on VBUS, the clamp activates and shunts transient energy to ground with the same snap-back behavior and 1-ohm dynamic resistance.

3. Ground Return Path: All ESD clamp circuits share a common GND reference (Pin 4). The flow-through pin arrangement — signal inputs on one side and ground on the opposite side — creates a low-inductance return path that is critical for effective high-frequency ESD suppression. Proper PCB layout with a solid ground plane beneath the device further optimizes clamping performance.

• Cellular phones and smartphones: Protects USB data and charging ports against ESD events during handling and cable insertion
• Digital cameras and portable media players: Safeguards USB interface during data transfer and charging from external power adapters
• GPS navigation devices: Provides ESD protection for USB connectivity in automotive and outdoor environments
• Portable computers and tablets with USB OTG: Protects dual-role USB ports that alternate between host and device modes
• USB charger and docking stations: Shields VBUS line from voltage transients in charging and docking applications
