MIC5332-SSYMT-TR

Dual 300mA ultra-low-Iq ULDO, 2x 3.3V output, 2mm x 2mm Thin MLF-8, 2.3-5.5V input, 120mV dropout @ 300mA, 25uA Iq/LDO, POR with programmable delay.

5657

Effective Inventory
Go to Inquiry

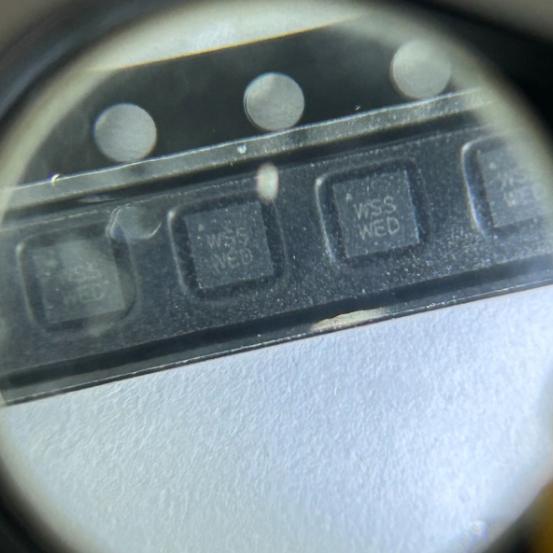

Image for reference only

Manufacturer Part：

MIC5332-SSYMT-TR

Package：

Thin MLF-8 / DFN-8 (2.0 x 2.0 x 0.6mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L072RBT6

TPS65217CRSLR

SN74HC273NSR

ADE7953ACPZ-RL

SN74HC138N

ATMEGA328-AU

AD826ARZ-REEL7

TPA0211DGNR

Description

Product Overview

The MIC5332-SSYMT-TR is a dual 300 mA ultra-low-quiescent-current ULDO (Ultra Low Dropout) regulator from Microchip in a compact 2 mm x 2 mm Thin MLF-8 package. Both LDO outputs are fixed at 3.3 V with +/-1% accuracy. Drawing only 25 μA per LDO, it achieves PSRR >65 dB and 50 μVrms output noise. LDO2 integrates a Power-On Reset (POR) output with programmable delay via an external capacitor, eliminating the need for a separate reset IC.

Key Specifications

Output Configuration Dual: 3.3 V / 3.3 V (both +/-1% typ)
Max Output Current 300 mA per LDO
Input Voltage 2.3 V to 5.5 V
Dropout Voltage 120 mV typ @ 300 mA / 20 mV typ @ 50 mA
Quiescent Current 25 μA typ per LDO (single enable) / 40 μA (dual enable)
PSRR >65 dB per LDO
Output Noise 50 μVrms typ
POR2 Delay Programmable: 1 sec/μF (CSET2 cap), open = zero delay
Output Capacitor 1 μF ceramic (stable)
Operating Temperature -40 °C to +125 °C
Package Thin MLF-8 (2.0 x 2.0 x 0.6 mm)

Features

  • Extremely low 25 μA/LDO quiescent current in a 2 mm x 2 mm package
  • LDO2 integrated POR with programmable delay eliminates external reset IC
  • Dual independent enable pins for power sequencing control
  • High PSRR and low noise for sensitive analog/RF circuits
  • 1 μF ceramic capacitor stability (μCap design)
  • Current limit and thermal shutdown protection

Applications

  • Battery-powered portable devices
  • FPGA/CPLD dual-rail power supply
  • Processor I/O and core voltage regulation
  • RF module low-noise power supply
  • Portable medical equipment
  • Smartphone/PDA power management

The MIC5332-SSYMT-TR is a dual 300mA ultra-low-quiescent-current ULDO from Microchip in a 2mm x 2mm Thin MLF-8 package. Both outputs are fixed 3.3V with +/-1% accuracy. Only 25uA quiescent current per LDO and 120mV dropout at 300mA. PSRR >65dB and 50uVrms output noise suit sensitive analog/RF circuits. LDO2 includes a Power-On Reset (POR) output with programmable delay via CSET2 capacitor (1sec/uF). Only 1uF ceramic output capacitor required for stability.

The MIC5332 integrates two independent CMOS LDOs sharing a common input but with separate enable controls. Each LDO contains a bandgap reference, error amplifier, and P-channel MOSFET pass element. CMOS process ensures very low ground current (25uA typ per LDO) that does not increase significantly with load. LDO2 integrates a POR comparator monitoring its output voltage; when output reaches threshold, POR2 goes high. CSET2 capacitor programs the POR delay (1sec/uF); open = zero delay. Current limit and thermal shutdown provide fault protection.

Pin Thin MLF-8 Function Description
1 VIN Input Supply 2.3V~5.5V
2 EN1 LDO1 Enable HIGH=on
3 EN2 LDO2 Enable HIGH=on
4 GND Ground –
5 CSET2 POR2 Delay Set Cap to GND; open = zero delay
6 POR2 LDO2 Power-On Reset Open-drain; needs pull-up
7 VOUT2 LDO2 Output 3.3V; 1uF ceramic cap
8 VOUT1 LDO1 Output 3.3V; 1uF ceramic cap
EP GND Exposed Pad Thermal and electrical GND
  • Battery-powered portable devices
  • FPGA/CPLD dual-rail power supply
  • Processor I/O and core voltage regulation
  • RF module low-noise power supply
  • Portable medical equipment
  • Smartphone/PDA power management
Model Type Notes
MIC5332-PMYMT-TR Same family 3.0V/2.8V output combo
MIC5332-G4YMT-TR Same family Other voltage combination
TPS73633DBVR Functional equiv. TI 3.3V 400mA single LDO; SOT-23-5
AP2125K-3.3 Functional equiv. BCD 3.3V 300mA single LDO
TLV70033DDCR Functional equiv. TI 3.3V 200mA LDO
