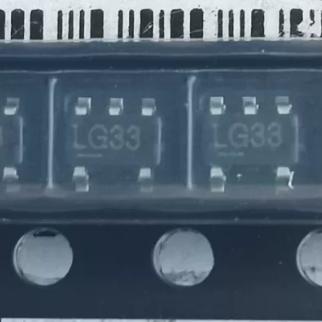

MIC5219-3.3YM5-TR

500mA peak ultra-low-noise LDO, 3.3V fixed output, SOT-23-5, 2.5-12V input, 350mV dropout @ 500mA, 80uA Iq, PSRR 75dB, -40C to +125C.

6012

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

MIC5219-3.3YM5-TR

Package：

SOT-23-5 (2.9 x 1.6 x 1.1mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L072RBT6

TPS65217CRSLR

SN74HC273NSR

ADE7953ACPZ-RL

SN74HC138N

ATMEGA328-AU

AD826ARZ-REEL7

TPA0211DGNR

Description

Product Overview

The MIC5219-3.3YM5-TR is a 500 mA peak-output ultra-low-noise LDO linear regulator from Microchip (formerly Micrel) in a SOT-23-5 package. It provides a fixed 3.3 V output with +/-1% accuracy from a 2.5 V to 12 V input. The BYP pin with an external 470 pF capacitor enables ultra-low output noise for RF-sensitive applications. Near-zero shutdown current (<1 μA) and CMOS/TTL-compatible enable control make it ideal for battery-powered and portable devices.

Key Specifications

Output Voltage 3.3 V fixed (+/-1% typ)
Max Output Current 500 mA peak
Input Voltage 2.5 V to 12 V
Dropout Voltage 350 mV typ @ 500 mA / 115 mV typ @ 50 mA
Quiescent Current 80 μA typ @ light load
Shutdown Current <1 μA typ
PSRR 75 dB @ 120 Hz
Line Regulation 0.009%/V typ
Load Regulation 0.05% typ
Operating Temperature -40 °C to +125 °C
Package SOT-23-5 (2.9 x 1.6 x 1.1 mm)

Features

  • Ultra-low noise output with BYP pin bypass capacitor
  • Near-zero shutdown current extends battery life
  • CMOS P-MOSFET pass element: ground current does not increase with load
  • Current limit, thermal shutdown, and reverse-battery protection
  • Only 2.2 μF tantalum output capacitor required
  • Available in fixed and adjustable output voltage versions

Applications

  • RF / wireless module power supply
  • Audio circuit low-noise supply
  • Battery-powered devices
  • GSM/GPRS module peak-current supply
  • USB-powered devices
  • 3.3 V logic power rail

The MIC5219-3.3YM5-TR is a 500mA peak-output ultra-low-noise LDO from Microchip (formerly Micrel) in SOT-23-5 package. Fixed 3.3V output with +/-1% accuracy. 350mV typical dropout at 500mA and 80uA quiescent current. BYP pin with 470pF capacitor enables ultra-low noise for RF applications. Near-zero shutdown current (<1uA). CMOS/TTL-compatible enable pin. Current limit, thermal shutdown, and reverse-battery protection included.

The MIC5219 uses a CMOS P-channel MOSFET pass element, so ground current does not increase significantly with load unlike bipolar LDOs. A bandgap reference provides a precise voltage reference; the error amplifier compares the feedback voltage with the reference and drives the P-MOSFET gate to regulate the output. The BYP pin connects to the internal reference; a 470pF capacitor filters reference noise for ultra-low output noise. EN pin controls the P-MOSFET; shutdown reduces ground current to near-zero. Current limit and thermal shutdown protect against faults.

Pin SOT-23-5 Function Description
1 IN Input Supply 2.5V~12V
2 GND Ground –
3 EN Enable CMOS/TTL; HIGH=on
4 BYP Bypass / Adjust Fixed ver: 470pF cap to GND for noise
5 OUT Output 3.3V; 2.2uF tantalum cap
  • RF / wireless module power supply
  • Audio circuit low-noise supply
  • Battery-powered devices
  • GSM/GPRS module peak-current supply
  • USB-powered devices
  • 3.3V logic power rail
Model Type Notes
MIC5219-5.0YM5-TR Same family 5.0V fixed output version
MIC5219YM5-TR Same family Adjustable output version
TLV70033DDCR Functional equiv. TI 3.3V 200mA LDO; SOT-23-5
RT9193-33GB Functional equiv. Richtek 3.3V 300mA LDO
AP2112K-3.3 Functional equiv. BCD 3.3V 600mA LDO; SOT-23-5
