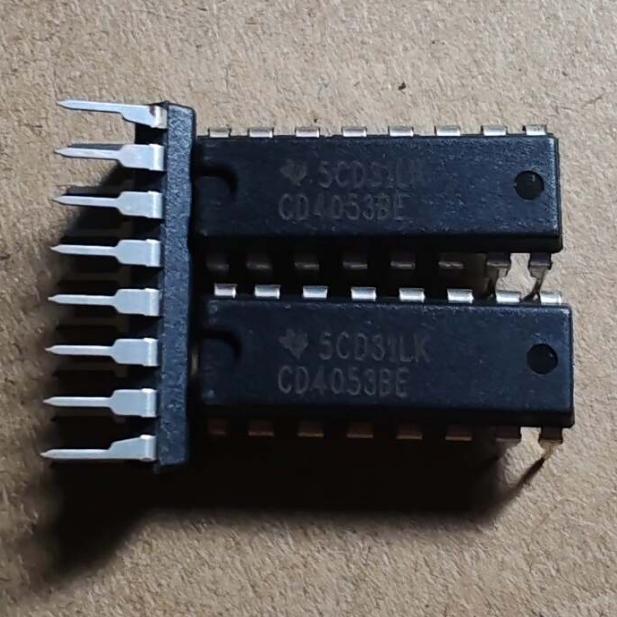

CD4053BE

Triple 2-Channel Analog Multiplexer, 3-20V, SPDT x3, PDIP-16

8789

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

CD4053BE

Package：

PDIP-16 (19.3 x 6.35 x 5.08 mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L072RBT6

TPS65217CRSLR

SN74HC273NSR

ADE7953ACPZ-RL

SN74HC138N

ATMEGA328-AU

AD826ARZ-REEL7

TPA0211DGNR

Description

Product Overview

The CD4053BE is a triple 2-channel analog multiplexer/demultiplexer manufactured by Texas Instruments. Each multiplexer features low ON resistance, low leakage, and wide signal handling capability. The device can handle analog signals from VDD to VEE, making it suitable for both analog and digital switching applications. It operates from a 3V to 20V supply with very low quiescent power dissipation.

Key Specifications

Channels Triple 2-channel (3 SPDT)
Supply Voltage Range 3V to 20V
Analog Signal Range VDD to VEE (+/- 10V)
ON Resistance 80 ohm typical at 15V
OFF Leakage Current 10pA typical
Switching Time 200ns typical
Operating Temperature -55C to +125C
Package PDIP-16

Features

  • Triple SPDT analog switch configuration
  • Low ON resistance (80 ohm at 15V)
  • Very low OFF leakage current (10pA)
  • Wide analog signal range including bipolar signals
  • Binary address decoding for channel selection
  • Inhibit pin for disabling all switches
  • Break-before-make switching

Applications

  • Analog signal routing and switching
  • Digital signal multiplexing
  • Sample-and-hold circuits
  • Analog-to-digital converter input selection
  • Audio and video signal switching

The CD4053BE from Texas Instruments is a triple 2-channel analog multiplexer/demultiplexer in a 16-pin DIP package. It contains three independent SPDT switches with low ON resistance of 80 ohm at 15V supply. The device can handle analog signals ranging from VDD to VEE, including bipolar signals when VEE is connected to a negative supply. Very low OFF leakage current of 10pA makes it suitable for precision signal routing in instrumentation and data acquisition systems.

The CD4053BE uses CMOS transmission gates to implement three independent SPDT switches. Each switch has two input/output channels and one common output/input. The binary address inputs (A, B, C) control which channel of each switch is connected to its common terminal. The INHIBIT pin disables all three switches when active high. The CMOS construction provides symmetrical ON resistance for both directions of signal flow. Break-before-make switching prevents momentary short circuits between channels during transition.

Pin Name Type Function
1 Y1 I/O Switch Y channel 1
2 Y0 I/O Switch Y channel 0
3 Z1 I/O Switch Z channel 1
4 Z-COM I/O Switch Z common
5 Z0 I/O Switch Z channel 0
6 INH Control Inhibit (active high)
7 VEE Power Negative supply / ground
8 VSS Power Ground
9 C Control Address input C
10 B Control Address input B
11 A Control Address input A
12 X0 I/O Switch X channel 0
13 X1 I/O Switch X channel 1
14 X-COM I/O Switch X common
15 Y-COM I/O Switch Y common
16 VDD Power Positive supply
  • Analog signal routing in test and measurement equipment
  • ADC input channel selection in data acquisition
  • Audio and video signal switching
  • Sensor multiplexing in industrial control
  • Communication system signal path selection
Manufacturer Part Number Package Notes
Texas Instruments CD4053BM SOIC-16 SMD version
onsemi MC14053BCP PDIP-16 Second source equivalent
NXP 74HC4053D SOIC-16 HC version, lower RON
Maxim/ADI DG4053E SOIC-16 Lower RON alternative
