74HC595D

8-bit serial-in/serial or parallel-out shift register with output latches and 3-state outputs in SOIC-16 package.

0

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

74HC595D

Package：

SOP16

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

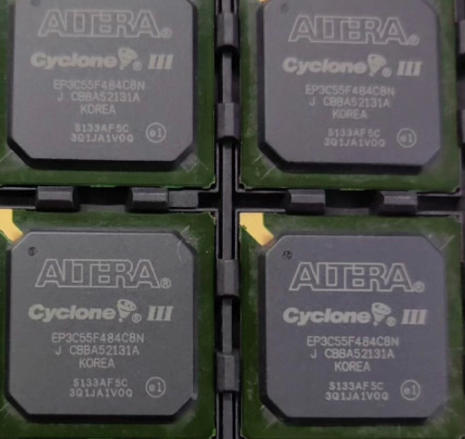

EP3C40F780C6N

EPF10K20TI144-4

MV-CNF10518A1-CF425AA-X200-CP

Description

Part Number: 74HC595D
Manufacturer: TI, NXP, ON Semiconductor
Device Type: 8-bit Shift Register with Output Latch
Package: SOP-16 (Surface Mount)

Core Characteristics

– Structure: 8-bit serial-in parallel-out shift register with 3-state parallel output latch – Supply Voltage: 2.0V ~ 6.0V – High-speed CMOS logic, low power consumption – Wide operating temperature: -40°C ~ +125°C

Pin & Function Features

– Serial data input, parallel data output – Supports cascade connection to expand multiple I/O ports – Output enable pin; can disable all outputs in high-impedance state – Master reset function; clears register data quickly

Main Advantages

– Converts serial signal to parallel output, saving MCU I/O resources – High noise immunity and strong anti-interference capability – Low input current, compatible with TTL and CMOS levels – Small SOP-16 package, suitable for compact PCB layout

Typical Applications

– LED display driver, dot matrix screen control – MCU I/O port expansion – Relay and switching circuit drive – Industrial logic control, digital circuit expansion – Communication signal parallel conversion

The 74HC595D is an 8-bit serial-in/serial or parallel-out shift register with storage register and 3-state outputs from Nexperia in SOIC-16 package. It features separate shift and storage register clocks, serial input (DS) and serial output (Q7S) for cascading, asynchronous master reset (MR), and 100MHz typical shift-out frequency. Supply voltage range 2.0V to 6.0V, CMOS low power dissipation, specified from -40°C to +125°C.

Working Principle(Within 200 Words)

Pin Number Pin Name Description
1 Q1 Storage register output 1 (3-state)
2 Q2 Storage register output 2 (3-state)
3 Q3 Storage register output 3 (3-state)
4 Q4 Storage register output 4 (3-state)
5 Q5 Storage register output 5 (3-state)
6 Q6 Storage register output 6 (3-state)
7 Q7 Storage register output 7 (3-state)
8 GND Ground (0V)
9 Q7S Serial output from shift register for cascading
10 MR Master reset (active LOW); resets shift register
11 SHCP Shift register clock input (rising edge triggered)
12 STCP Storage register clock input (rising edge triggered)
13 OE Output enable (active LOW); HIGH = high-impedance outputs
14 DS Serial data input
15 Q0 Storage register output 0 (3-state)
16 VCC Positive supply voltage (2.0V to 6.0V)
Application Description
Serial-to-Parallel Conversion Expanding microcontroller output pins using only 3 control lines (DS, SHCP, STCP)
LED Matrix Driving Driving 8 or more LEDs with cascaded shift registers using minimal I/O
Seven-Segment Display Controlling multi-digit 7-segment displays with multiplexing
Remote Control Holding Register Buffering data for remote or low-speed peripheral interfaces
GPIO Expansion Adding digital outputs to microcontrollers with limited I/O pins
Industrial Control Panels Driving indicator LEDs and relay control lines in panel interface circuits
Model Manufacturer Package Key Difference
74HCT595D Nexperia SOIC-16 TTL input levels (vs. CMOS for HC version)
74HC595PW,118 Nexperia TSSOP-16 Same function, smaller TSSOP package
SN74HC595DR Texas Instruments SOIC-16 Pin-compatible TI-branded equivalent
MC74HC595ADG onsemi SOIC-16 Pin-compatible onsemi-branded equivalent
74HC164D Nexperia SOIC-14 8-bit shift register without output latches, simpler function
