FGH40T120SMD

Product Overview The FGH40T120SMD from onsemi is a 1200V, 40A N-channel IGBT in an SMD-1 package. Using punch-through technology, it achieves VCE(sat) of 2.1V max at 40A, making it suitable for motor drive inverters and power converters up to 20kHz switching frequency. Key Specifications VCE 1200V IC (Continuous) 40A @ Tc=25°C VCE(sat) Max 2.1V @ […]

SP3232EEY-L/TR

Product Overview The SP3232EEY-L/TR from MaxLinear is a 3.0V to 5.5V RS-232 transceiver with 250kbps data rate and +/-15kV ESD protection in a 16-TSSOP package. Pin-compatible with MAX3232, it provides 2 drivers and 2 receivers with only 4 external capacitors. Key Specifications Protocol RS-232 Drivers / Receivers 2 / 2 Data Rate 250kbps Supply Voltage […]

LAN7500I-ABZJ

Product Overview The LAN7500I-ABZJ from Microchip is a high-speed USB 2.0 to 10/100/1000 Ethernet controller in a 56-pin QFN package. It provides a complete gigabit Ethernet solution via USB with checksum offload, Wake-on-LAN, and industrial temperature operation. Key Specifications Function USB 2.0 to 10/100/1000 Ethernet USB Speed 480Mbps (Hi-Speed) Ethernet Speed 10/100/1000Mbps PHY Interface Integrated […]

LM2576R-5.0

Product Overview The LM2576R-5.0 from Texas Instruments is a 3A step-down switching voltage regulator with fixed 5.0V output in a TO-263 (D2PAK) surface-mount package. Operating from up to 40V input with 52kHz switching frequency, it requires minimal external components. Key Specifications Input Voltage 4V ~ 40V Output Voltage 5.0V fixed (+/-4%) Output Current 3A Switching […]

H1102NLT

Product Overview The H1102NLT from Pulse Electronics (Yageo) is a single-port 10/100Base-TX Ethernet transformer module with integrated RJ-45 connector and magnetics. Designed for use with 10/100 Ethernet PHY transceivers such as the RTL8201F. Key Specifications Function Single-port 10/100 Ethernet magnetics + RJ-45 Supported Speed 10Base-T / 100Base-TX Turns Ratio 1:1 (CT) Isolation Voltage 1500Vrms OCL […]

CD74HC4051M96

Product Overview The CD74HC4051M96 from Texas Instruments is an 8-channel high-speed CMOS analog multiplexer/demultiplexer in a 16-SOIC package. Operating from 2V to 10V with 70Ohm typical on-resistance, it provides bidirectional signal routing for analog and digital signals. Key Specifications Function 8-channel analog MUX/DEMUX Channels 8 (single-ended) Ron (Typical) 70 Ohm @ 5V, 25°C Supply Voltage […]

MAX3079EESD+T

Product Overview The MAX3079EESD+T from Analog Devices (Maxim) is a 3.3V RS-485/RS-422 full-duplex transceiver with ±15kV ESD protection in a 14-SOIC package. Supporting data rates up to 16Mbps, it is designed for high-speed industrial communication. Key Specifications Protocol RS-485 / RS-422 Duplex Full Duplex Data Rate 16Mbps Supply Voltage 3.0V ~ 3.6V ESD Protection ±15kV […]

MAX3232ESE+T

Product Overview The MAX3232ESE+T from Analog Devices (Maxim) is a 3.0V to 5.5V RS-232 transceiver with 250kbps data rate and +/-15kV ESD protection in a 16-SOIC package. It provides 2 drivers and 2 receivers with only 4 external 0.1uF capacitors. Key Specifications Protocol RS-232 Drivers / Receivers 2 / 2 Data Rate 250kbps Supply Voltage […]

EZ1084CM-3.3

Product Overview The EZ1084CM-3.3 from Semtech is a 5A low-dropout voltage regulator providing fixed 3.3V output in a SOT-223 package. With 1.3V maximum dropout at 5A load, it is a high-current LDO suitable for 5V to 3.3V conversion in digital systems. Key Specifications Output Voltage 3.3V fixed (+/-1%) Output Current 5A Dropout Voltage 1.3V max […]

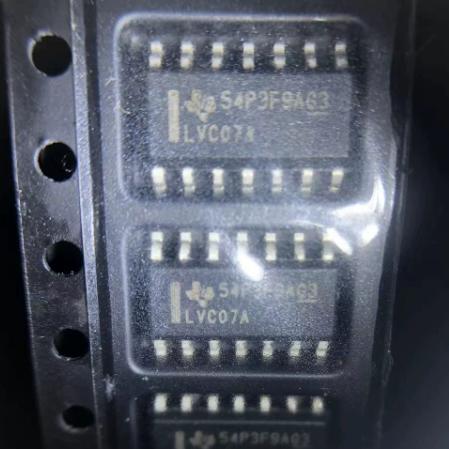

SN74LVC07ADR

Product Overview The SN74LVC07ADR from Texas Instruments is a hex buffer/driver with open-drain outputs in a 14-SOIC package. Operating from 1.65V to 5.5V with 24mA output drive and over-voltage tolerant inputs, it is designed for level translation and wired-OR bus driving. Key Specifications Function Hex buffer with open-drain outputs Supply Voltage 1.65V ~ 5.5V Output […]
